master switch for commercial and recreational

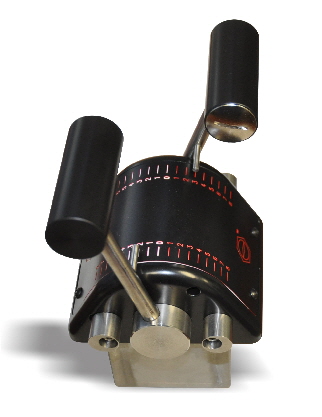

ST3 Heavy Duty Master Switch developed for commercial and recreational marine applications.
Available with preselected analogue values and single or dual independent engine control capabilities.
Stepless with up to 8-0-8 positions indicator, IP 66 Protection
Oil, Ozone, UV and Salt Atmosphere (Ocean Conditions) Resistant
Input Voltage: 12VDC or 24VDC
Optional CAN open interface, Profibus –DP- interface
or Current output 20-4-20 mAmp
Available with adjustable Friction Brake Directional Contacts
Rated 30VDC/0.5 Amp
Life expectancy: 10 million operations
Push button in the handle on request
Operating temperature -40°C/+60°C
