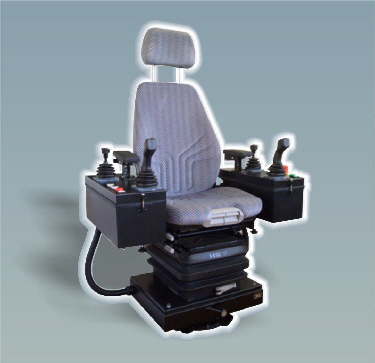

FSA ergonomically designed Control Station

Ergonomically designed for various applications where space is the issue

Control Station FSA offers high comfort for the operator. It offers various adjustments: seat height, seat tilt, seat cushion depth, combined longitudinal adjustment
of enclosures and seat, lumbar support, backrest adjustment, weight adjustment and armrest adjustable
in height and tilt supply optimal working position for every body size.

Comfort Seat with long well-formed backrest
and reinforced side contour for optimal seating position
as well as mechanical suspension with height adjustment.

The top lid with devices can be lifted and locked into position for easy wiring or maintenance.

The base is constructed of heavy duty steel.

Terminals are integrated in base console..

Smooth rotary motion, stepless lock via friction brake or lock by notches in the range from 180 right to 90 left.

Powder Coated metal parts RAL7032 Pebble Gray for extended durability.

(905) 361-1515

Control stataion BG-top
main menu

e-mail: sales@wavetechcontrols.ca



errow - right-124
FSA-large-2
errow - right-124
errow - right-124
errow - right-124
errow - right-124
errow - right-124
products
errow - right-124

options

1    Standard Enclosures 200 mm x 500 mm x 200 mm
2    Special size
3    Footrest Mounted to the swivel base
4    Headrest
5    Armrest
6    Horizontal or vertical mechanical adjustment
      of enclosures
7    Motorized Rotation
8    Pneumatic suspension with 12 or 24 VDC compressor
9    V- Cut seat
10  Wiring to Terminal Strip
11  Monitor holder
12  Special Paint


FSA-200
FSA-XXX
F
H
A
HA, V9

M
PS
V
W
MH
SP
